Using the connector

This page describes how to use the Google Cloud Platform (GCP)connector with the Google Cloud CLI or with an HTTPS request.

Google cloud function actions

The two major functions you can perform using the connector are enrolling and renewing certificates. Using either Google Cloud CLI or HTTPS, you can enroll or renew SSL certificates and add them to Google Cloud Certificate Manager.

You can enroll a single domain, or multi-domain (SAN) or wildcard certificate by using different parameters in the payload file.

Use the csr_domain parameter for:

  • single domain

  • wildcard domain

Use the csr_domain and ssl_cert_subject_alt_names parameters for:

  • multi-domain (SAN)

  • wildcard domain in SAN

Certificates can be assigned to a specific region or regions, or globally, using the cert_region parameter.

SSL certificate quota

Before enrollment or renewal the quota for SSL certificates is checked. By default, GCP allows enrolling or renewing of up to 10 certificates. If you need more than 10 certificates, contact GCP support.

When Quota SSL_CERTIFICATES is exceeded, execution stops. In the current implementation, during renew if you have 10 certificates in GCP CM and would like to renew all of them then your Quota SSL_CERTIFICATES must be 20 certificates to make successful renewal possible.

Metric name = compute.googleapis.com/ssl_certificates

Limit name = SSL-CERTIFICATES-per-project

For more information, see https://cloud.google.com/compute/quotas.

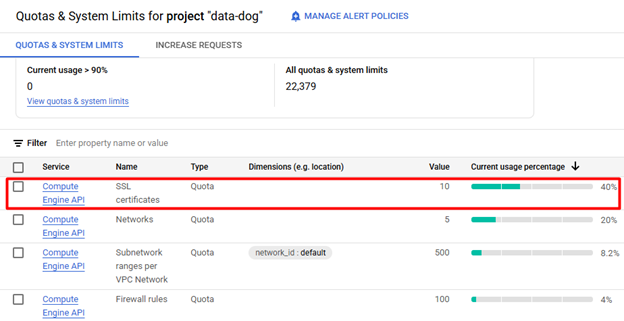

quota SSL

Enroll a certificate

Enrollment parameters

The parameters of the gcloud function payload file are described in the following table.

Parameter Description

action

Performed action. In this case use ENROLL.

account

A name for your account.

In the examples that follow we use ENROLL_API_ACCOUNT, which was created in Customize the scm.yaml file > Enrollment API.

cert_region

Used to define regional SSL certificates. If this field is absent then region defaults to GLOBAL.

cert_profile

The cert_profile may contain any/all of the sub-fields listed in the rest of this table.

cert_profile sub-fields

csr_domain

The domain included in the certificate Common Name (CN) field. This field is used to enroll a single-domain certificate.

csr_country

The country name in the certificate Country © field.

csr_state

The state or province in the certificate State (ST) field.

csr_location

The locality name in the certificate Locality (L) field.

csr_organization

The organization name in the certificate Organization (O) field.

csr_email_address

The email address in the certificate Email Address field.

csr_key_type

The key algorithm to use for certificate enrollment. The possible values are RSA and EC.

csr_key_size

The key size to use for certificate enrollment. The possible values are:

RSA: 2048, 3072, and 4096

ECDSA: 256, 384, and 521

ssl_cert_comments

Comments for certificate enrollment.

ssl_cert_subject_alt_names

The comma-separated list of subject alternative names (SAN) for the certificate. This field is used to enroll a mult-domain or wildcard certificate.

ssl_cert_validity

Certificate validity period in days.

expiry_window

Number of days prior to expiration that the certificate’s renewal process is initiated.

auto_renew

Whether the certificate should renew automatically. Options are true or false.

If you’re getting a 200 status code response, but the connector isn’t performing the requested operation, there is probably a syntax error in your scm.yaml file. Make sure to validate your YAML file using a YAML validator, for example, Code Beautify.

Enroll a single-domain certificate using CLI

You can enroll a single domain certificate by using the csr_domain and not using the ssl_cert_subject_alt_names parameter.

Certificates can be assigned to a specific region or regions, or globally, dictated by the cert_region parameter.

In these examples we use the account name ENROLL_API_ACCOUNT, which was created in Customize the scm.yaml file > Enrollment API.

  • Global scope

  • Regional scope

gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}' --format=json --region=us-central1
gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_region": "europe-central2,africa-south1",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}' --format=json --region=us-central1

Enroll a single-domain certificate using HTTPS

  • Default region

  • Specific region

curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}'
curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_region": "europe-central2,africa-south1",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}'

Enroll a multi-domain (SAN) or wildcard certificate using CLI

You can enroll a multi-domain (SAN) or wildcard certificate using the csr_domain and ssl_cert_subject_alt_names parameter.

Certificates can be assigned to a specific region or regions, or globally, dictated by the cert_region parameter.

In these examples we use the account name ENROLL_API_ACCOUNT, which was created in Customize the scm.yaml file > Enrollment API.

  • Global scope

  • Regional scope

gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "san1.ccmqa.com, *.san2.ccmqa.com",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}' --format=json --region=us-central1
gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_region": "europe-central2,africa-south1",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "san1.ccmqa.com, *.san2.ccmqa.com",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}' --format=json --region=us-central1

Enroll a multi-domain (SAN) or wildcard certificate using HTTPS

In these examples we use the account name ENROLL_API_ACCOUNT, which was created in Customize the scm.yaml file > Enrollment API.

  • Default region

  • Specific region

curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "san1.ccmqa.com, *.san2.ccmqa.com",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}'
curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{
"action": "enroll",
"account": "ENROLL_API_ACCOUNT",
"cert_region": "europe-central2,africa-south1",
"cert_profile": {
  "ssl_cert_comments": "coments test with Enrollment API",
  "csr_domain": "your.domain",
  "ssl_cert_subject_alt_names": "san1.ccmqa.com, *.san2.ccmqa.com",
  "ssl_cert_validity": 365,
  "csr_country": "",
  "csr_state": "",
  "csr_location": "",
  "csr_organization": "",
  "csr_email_address": "",
  "csr_key_type": "RSA",
  "csr_key_size": 2048,
  "force_renewal": true,
  "expiry_window": 30,
  "auto_renew": true
  }
}'

Renew a certificate

Renew parameters

The renew parameters are described in the following table.

Parameter Description

action

Performed action. In this case use renew.

account

A name or label for your account. This field is optional if you specify cert_name.

cert_name

The unique identifier assigned to a specific certificate. You must specify at least one of account or cert_name.

cert_region

Used to define regional SSL certificates. If this field is absent then region defaults to GLOBAL.

If you’re getting a 200 status code response, but the connector isn’t performing the requested operation, there is probably a syntax error in your scm.yaml file. Make sure to validate your YAML file using a YAML validator, for example, Code Beautify.

Renew specific certificates using CLI

When you renew a certificate, you can change some of the details.

  • Global scope

  • Regional scope

gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data  '{"action":"renew", "cert_name":"cert20250616115607597314"}' --format=json
gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data  '{"action":"renew" , "cert_region": "europe-central2", "cert_name":"cert20250616115607597314"}' --format=json

Renew all certificates for a specific account with CLI

When you renew a certificate, you can change some of the details.

In these examples we use the account name ENROLL_API_ACCOUNT, which was created in Customize the scm.yaml file > Enrollment API.

  • Global scope

  • Regional scope

gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data  '{"action":"renew","account":"ENROLL_API_ACCOUNT}' --format=json
gcloud functions call --gen2 sectigogcpcm-us-central1-agcpf --data  '{"action":"renew","account":"ENROLL_API_ACCOUNT" , "cert_region": "europe-central2"}'  --format=json

Renew specific certificates using HTTPS

  • Default region

  • Specific region

curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{"action":"renew","account":"ENROLL_API_ACCOUNT"}'
curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{"action":"renew","account":"ENROLL_API_ACCOUNT"}' \
--region=us-central1

Renew all certificates using HTTPS

  • Default region

  • Specific region

curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{"action":"renew"}'
curl -X POST -H "Authorization: Bearer $(gcloud auth print-identity-token)" \
'https://us-central1-local-project-340815.cloudfunctions.net/SectigoGCP-us-central1' \
-H "Content-Type:application/json" \
--data '{"action":"renew"}' \
--region=us-central1

View certificates on Google console

To view your certificates on GCP, navigate to Google Cloud Console > Certificate Manager.

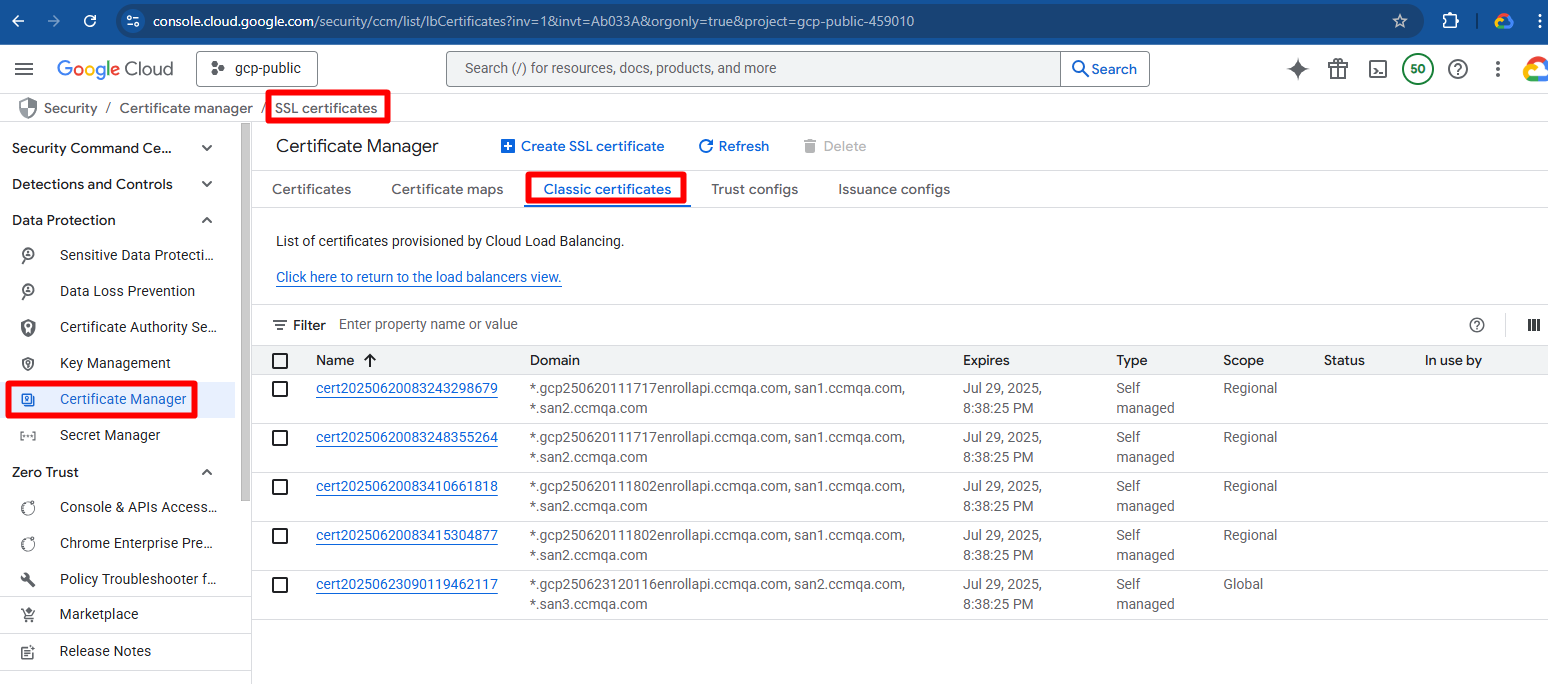

View certificates in GCP

Attaching certificates to load balancers

The SectigoGCPCM_https_lb_example and SectigoGCPCM_ssl_lb_example archives contain sample Terraform configuration for provisioning and attaching certificates to external HTTP(S) load balancers and SSL proxy load balancers.

Add the external data source configuration to your main Terraform module. The data source triggers the enroll.sh script that calls the Cloud Function to enroll a certificate and attach it to the target proxy for the load balancer. The README.md file in the archive provides instructions on using the external data source.

The following is a sample data source configuration.

// Data source for enrolling a certificate
data "external" "example" {
  program = ["/bin/bash","./enroll.sh","sectigohttpslb.ccmqa.com"]
}

output cert_name {
  value = "${data.external.example.result.result}"
}

// Target HTTPS proxy for the load balancer
resource "google_compute_target_https_proxy" "default" {
  depends_on = [
    data.external.example
  ]
  name             = "example-target-proxy"
  url_map          = google_compute_url_map.default.id
  ssl_certificates = ["${data.external.example.result.result}"]
}
