Using the connector

This page describes how to manage the certificate lifecycle on Avi Load Balancer and how to manage system alerts.

Enroll a certificate

You can enroll a certificate using the Avi UI or bash script.

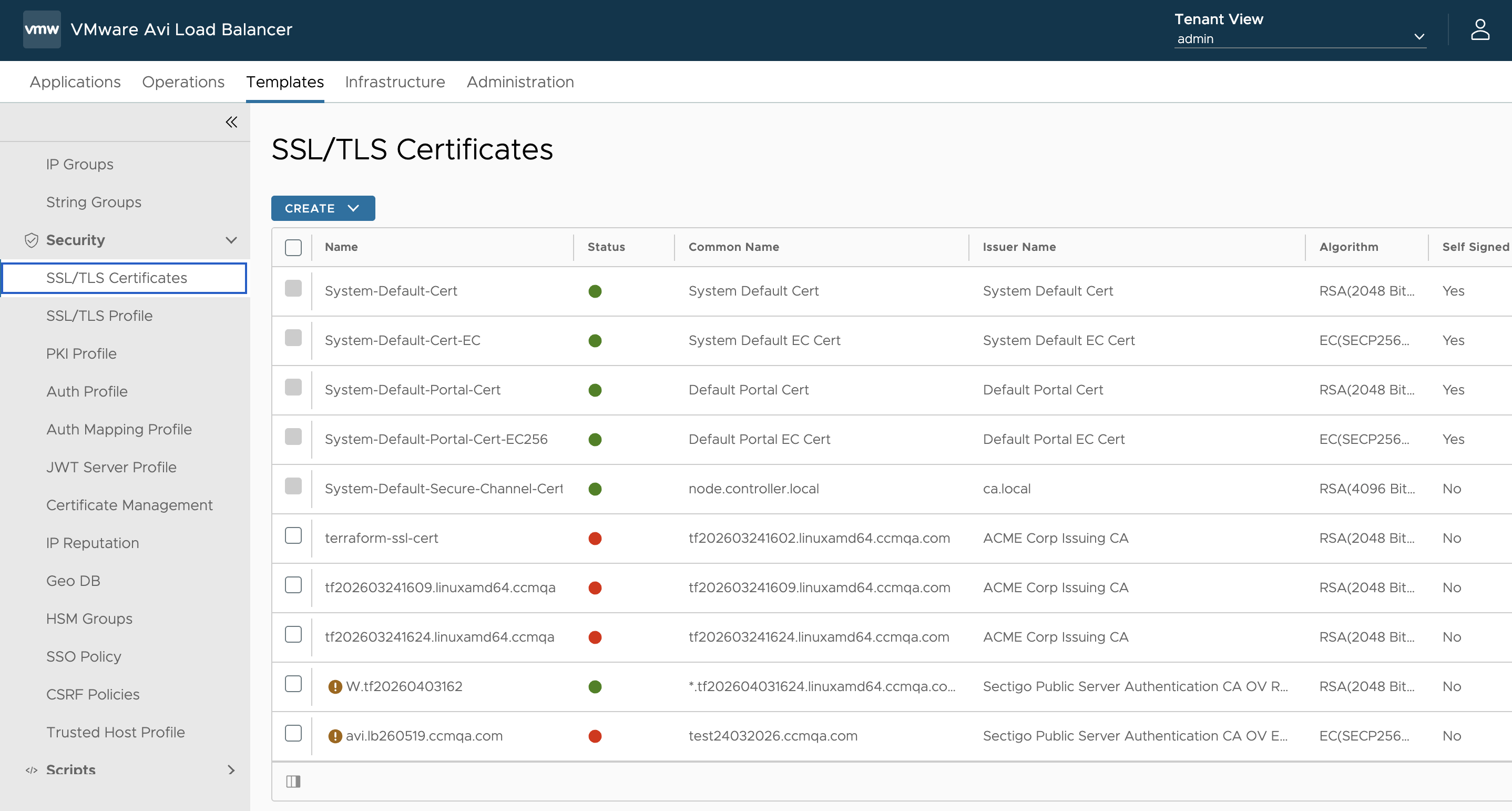

Once enrolled, you can view certificates in SCM on the SSL Certificates page. Click on a certificate to view its details.

Enroll a certificate using the Avi UI

In Avi Load Balancer, select the Templates tab.
From the left navigation panel, select Security > SSL/TLS Certificates.
Click Create.

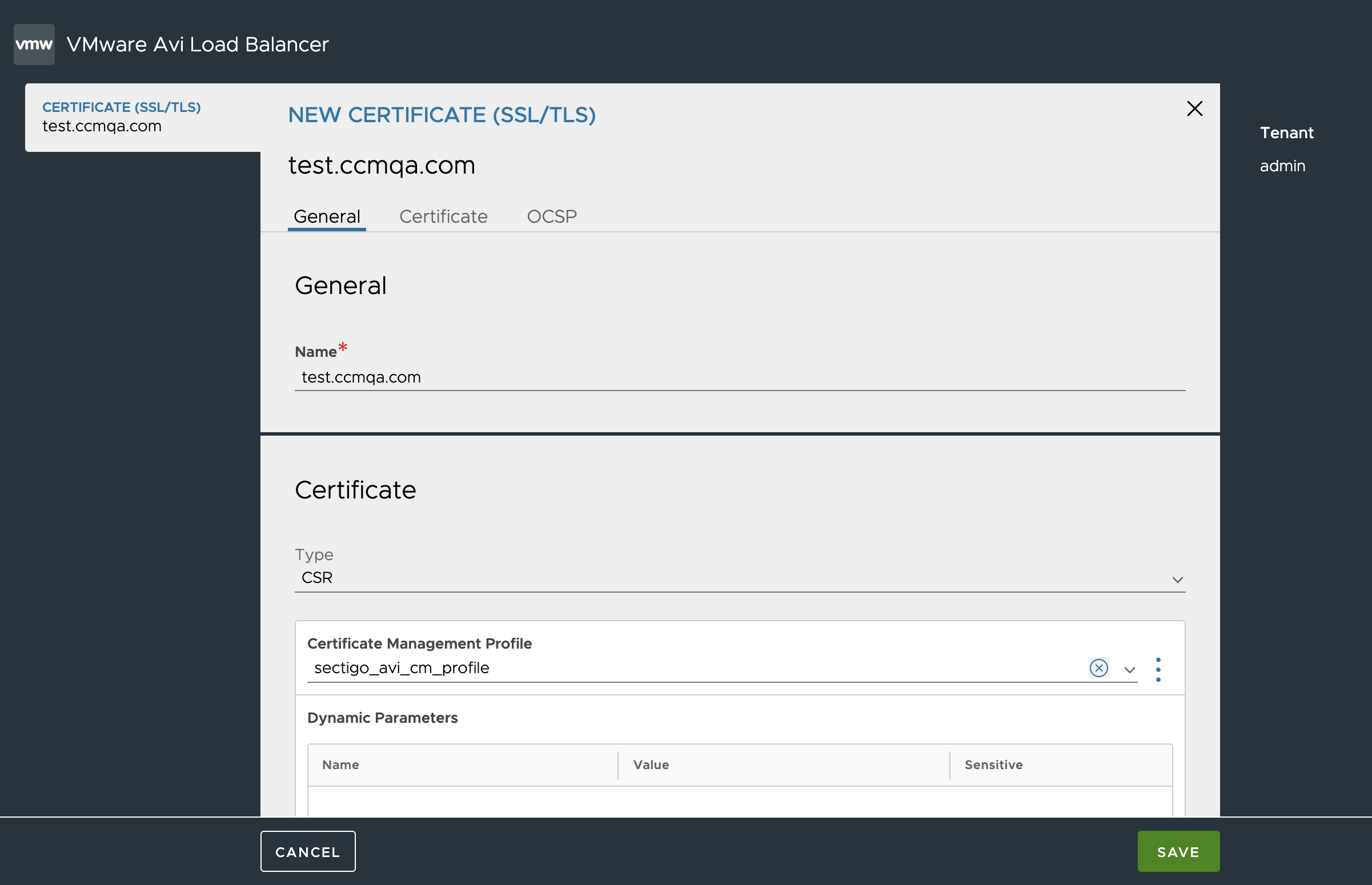

In the New Certificate (SSL/TLS) window, complete the fields for the certificate, referring to the following table.

Field Description

General

Name

Required. The display name for this certificate in Avi (for example, www.example.com).

Certificate

Type

Select CSR.

Certificate Management Profile

Required. Select the Sectigo certificate management profile you created earlier.

Dynamic Parameters

Populated automatically from the selected profile.

You can override Issuer (must remain Sectigo) and sectigo_ssl_cert_validity (validity in days) here if you need per-certificate values.

HSM Group

Optional. Use when the private key must be stored in a Hardware Security Module, otherwise leave unset.

Is Federated

Optional. Enable only if you’re using Avi GSLB and want this certificate replicated across all sites in the federation.

Common Name

The primary domain the certificate protects (for example, www.example.com).

Contact email address included in the certificate subject.

Organization

Legal organization name.

Organization Unit

Department or unit within the organization.

Locality or City

City the organization is located in.

State Name or Province

State or province the organization is located in.

Country

Two-letter ISO country code (for example, US).

Algorithm

Signing algorithm for the key pair. The options are RSA or ECDSA.

Key Size

Key size for the selected algorithm. The options are:

RSA: 2048 or 4096
ECDSA: P-256

Subject Alternate Name (SAN)

Additional domains the certificate should cover.

Click ADD and enter each SAN.

OCSP

Enable OCSP Stapling

Optional. Enable if you want Avi to staple OCSP responses to TLS handshakes so clients don’t have to contact the OCSP responder directly.

If OCSP stapling is not enabled, the status for a certificate will appear green, but hovering over it reveals a message that OCSP stapling is not enabled.

Click Save.

The enrolled certificate should appear on the SSL/TLS Certificates page. Make sure the status is green and when you hover over it there are no warnings or errors.

Enroll a certificate using the bash script

Open the enroll.sh script in your preferred editor.

Specify CSR information in the certificate_params JSON object.

certificate_params='{
    "name": "my-server-cert",
    "common_name": "www.example.com",
    "subject_alt_names": [
        "www.example.com",
        "example.com"
    ],
    "country": "US",
    "state": "California",
    "locality": "San Francisco",
    "organization": "Example Inc",
    "organization_unit": "IT",
    "email_address": "[email protected]",
    "key_params": {
        "algorithm": "SSL_KEY_ALGORITHM_EC",
        "key_type": "SSL_KEY_EC_CURVE_SECP256R1"
    },
    "enable_ocsp_stapling": true
}'

You may also update the value of the algorithm or key_type key.

Algorithm Key Type

Algorithm	Key Type
`SSL_KEY_ALGORITHM_RSA`	The possible values are `SSL_KEY_2048_BITS` and `SSL_KEY_4096_BITS`.
`SSL_KEY_ALGORITHM_EC`	The possible values are `SSL_KEY_EC_CURVE_SECP256R1` and `SSL_KEY_EC_CURVE_SECP384R1`.

SSL_KEY_ALGORITHM_RSA

The possible values are SSL_KEY_2048_BITS and SSL_KEY_4096_BITS.

SSL_KEY_ALGORITHM_EC

The possible values are SSL_KEY_EC_CURVE_SECP256R1 and SSL_KEY_EC_CURVE_SECP384R1.

Run the enrollment script.
```
enroll.sh
```
Once the enrollment is complete, confirm that the enrolled certificate is visible on the SSL/TLS Certificates page in Avi Load Balancer.

Renew a certificate

Renewal updates the existing Avi certificate object in place (with the same UUID). The certificate’s private key and every virtual service reference to it are preserved across renewals.

The Avi Controller automatically attempts to renew certificates when an expiration alert is fired.

The alert triggers the connector to do the following:

First, the connector checks the issuer of the certificate. Only certificates issued by Sectigo (or legacy Comodo, USERTrust, AAA Certificate Services) are eligible.
- The connector will skip certificates issued by any other CA, even if an alert is fired.
Before contacting Sectigo, the connector checks the certificate’s revocation and expiry status. If neither indicates a problem, the alert is ignored.
If a previous attempt is still pending in Sectigo, the connector reuses that pending request instead of issuing a new one.
After issuance, the connector resolves the issuing CA on the Controller and uploads the certificate together with the full chain.

After an alert fires, the connector polls Sectigo every 30 seconds for the issued certificate, up to a maximum of 10 minutes. A typical renewal completes in under a minute, but may take up to 10 minutes when the CA is slow.

By default, the system generates expiration alert notifications 30 days, 7 days and 1 day before expiry, and will attempt a renewal on the last-but-one time interval.

You can customize when expiry notifications are sent by changing the ssl_certificate_expiry_warning variable. See the Avi Load Balancer documentation for more information.

Manage alerts

The Avi Controller automatically attempts to renew certificates when an expiration alert occurs.

The control script checks that the certificate exists and the value of its Issuer custom field is equal to Sectigo (or legacy Comodo, USERTrust, AAA Certificate Services). If the Issuer field doesn’t exist or has an incorrect value, the script won’t replace certificates that are expired or revoked.

The Alert Action must run under the same tenant that owns the SSL/TLS certificate. If the alert runs under a different tenant, the connector cannot find the certificate and the renewal silently fails.

Configure an alert

In Avi Load Balancer, select the Operations tab.

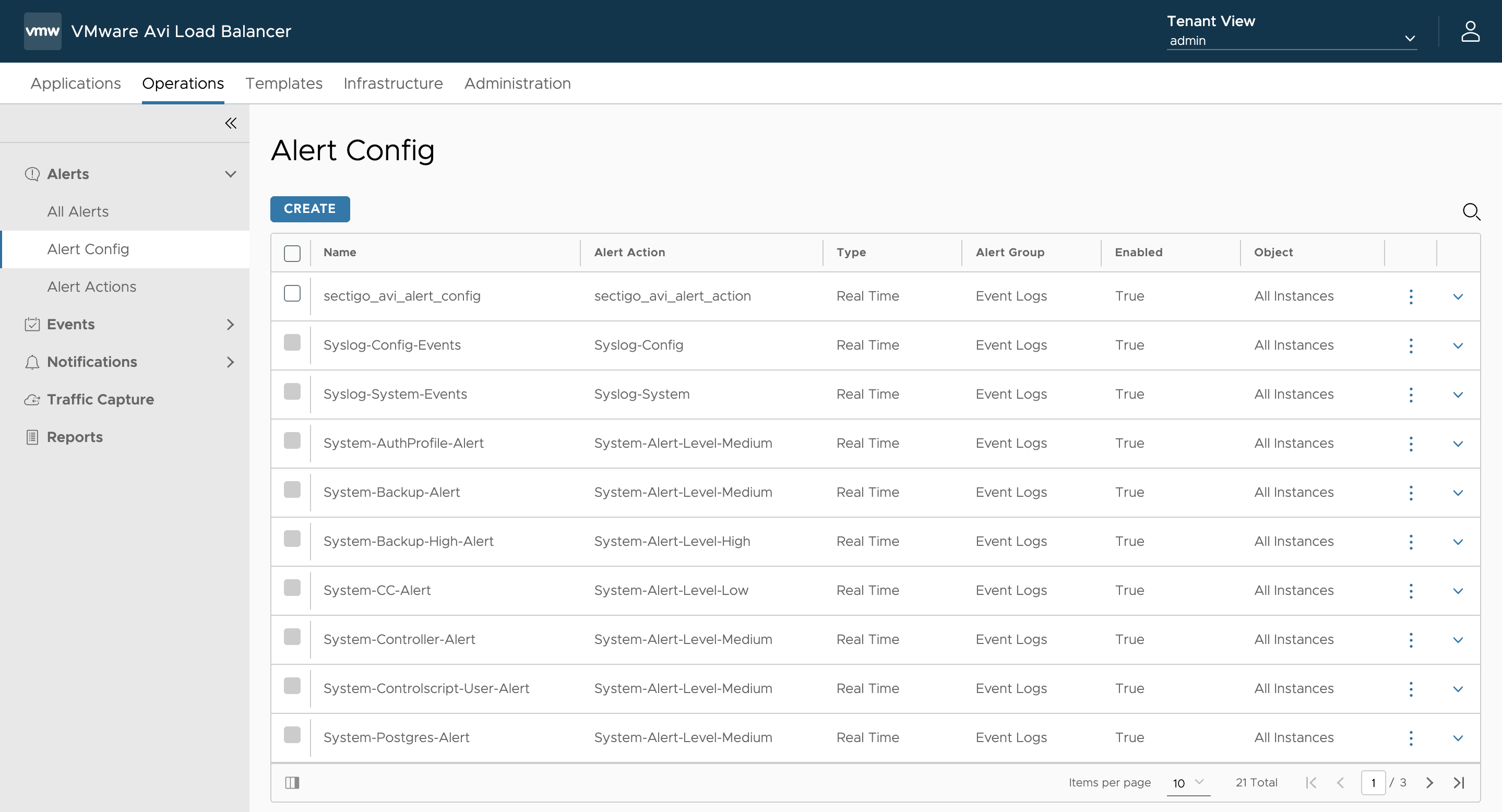

From the left navigation panel, select Alerts Alert Config.
Click Create.

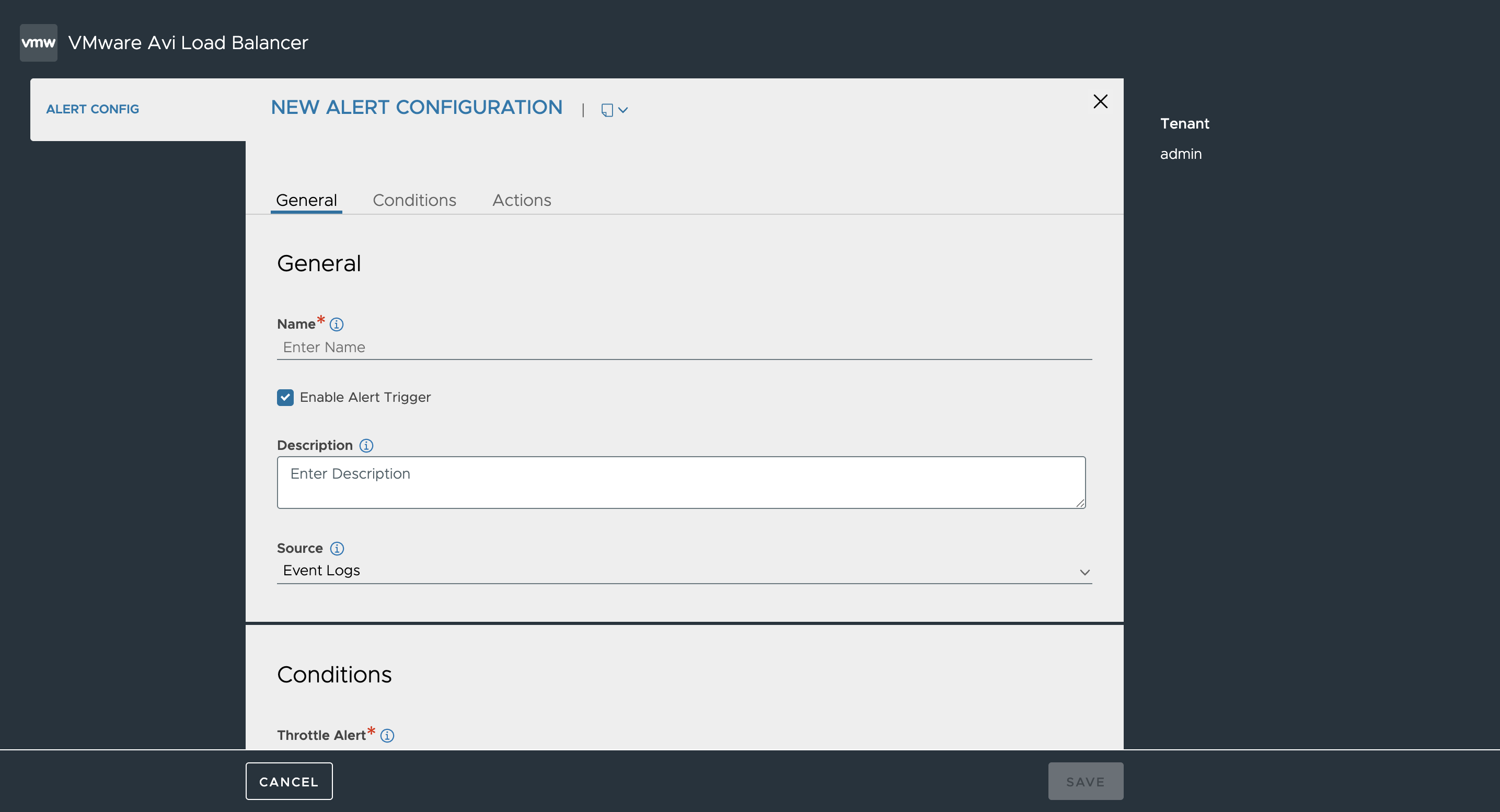

In the New Alert Configuration window, complete the fields in each tab, referring to the following table.

Field Description

Field	Description
General
Name	Required. Display name for the alert configuration.
Enable Alert Trigger	Default is `On`. When `Off`, the alert does not fire.
Description	Optional free-text description.
Source	Default Event Logs. The Sectigo connector relies on Avi’s built-in `SSL_CERT_EXPIRE` / `SSL_CERT_REVOKED` event log entries.
Conditions
Throttle Alert	Required. Minimum seconds between repeated firings of the same alert. Default `600` is recommended since lower values can cause duplicate enrollments.
Object	Options are: `None` / `Virtual Service` / `Service Engine` / `Pool`. Select `None` so the alert applies to all SSL/TLS certificates in the tenant.
Number of Occurrences	Number of matching events that must occur before the alert fires. Default `1` is recommended.
Category	Options are: `Real Time` / `Rolling Window`. Select `Real Time` to fire an alert as soon as the event happens.
Events	Required. Click ADD and select two events: `SSL Cert Expire` and `SSL Cert Revoked`.
AutoScale Alert	Leave unchecked. This option is for autoscaling notifications, not certificate alerts.
Actions
Field	Description
Alert Action	Required. Select an alert action.
Alert Expiry Time	How long (in seconds) the alert stays active after being raised. Default 86400 (24 hours) is fine.

General

Name

Required. Display name for the alert configuration.

Enable Alert Trigger

Default is On. When Off, the alert does not fire.

Description

Optional free-text description.

Source

Default Event Logs. The Sectigo connector relies on Avi’s built-in SSL_CERT_EXPIRE / SSL_CERT_REVOKED event log entries.

Conditions

Throttle Alert

Required. Minimum seconds between repeated firings of the same alert. Default 600 is recommended since lower values can cause duplicate enrollments.

Object

Options are: None / Virtual Service / Service Engine / Pool. Select None so the alert applies to all SSL/TLS certificates in the tenant.

Number of Occurrences

Number of matching events that must occur before the alert fires. Default 1 is recommended.

View existing alerts

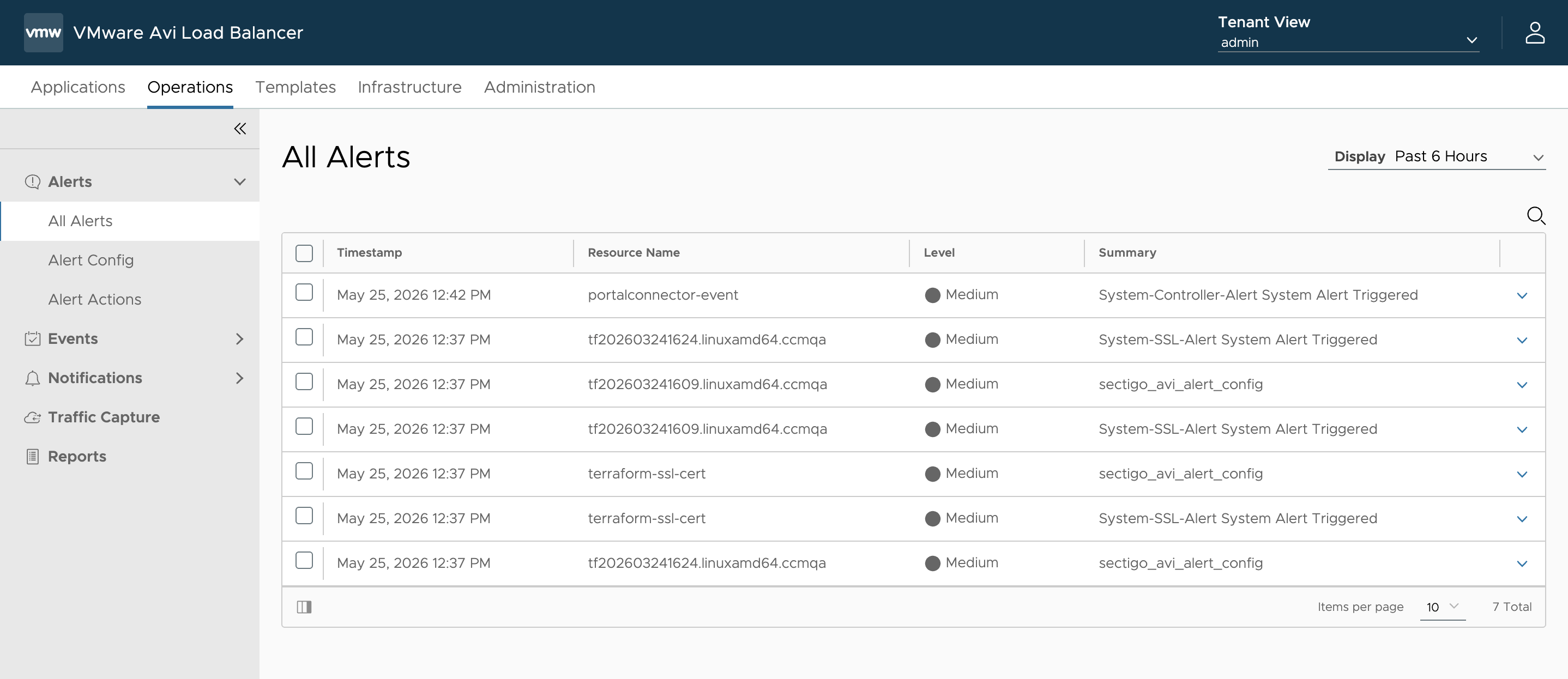

All the existing alerts can be viewed by going to Operations > Alerts > All Alerts.

Edit an alert

To edit an alert:

Navigate to Operations > Alerts > All Alerts.
Select the box next to the alert you want to edit and click the EDIT button that appears at the top of the page.
In the Edit Alert Configuration window, make your changes referring to the field descriptions in Configure an alert.

Delete an alert

To delete an alert:

Navigate to Operations > Alerts > All Alerts.
Select the box next to the alert you want to delete and click the DELETE button that appears at the top of the page.

Revoke a certificate

Certificates are revoked either automatically once the expiry date has been reached, or manually in SCM. A revoked certificate will have a red icon in its status field.

View the logs

Logs record timestamped events that occur within the system. Once enabled, all logs for events that occur within the Avi Controller can be viewed on the Events page:

In Avi Load Balancer, select the Operations tab.

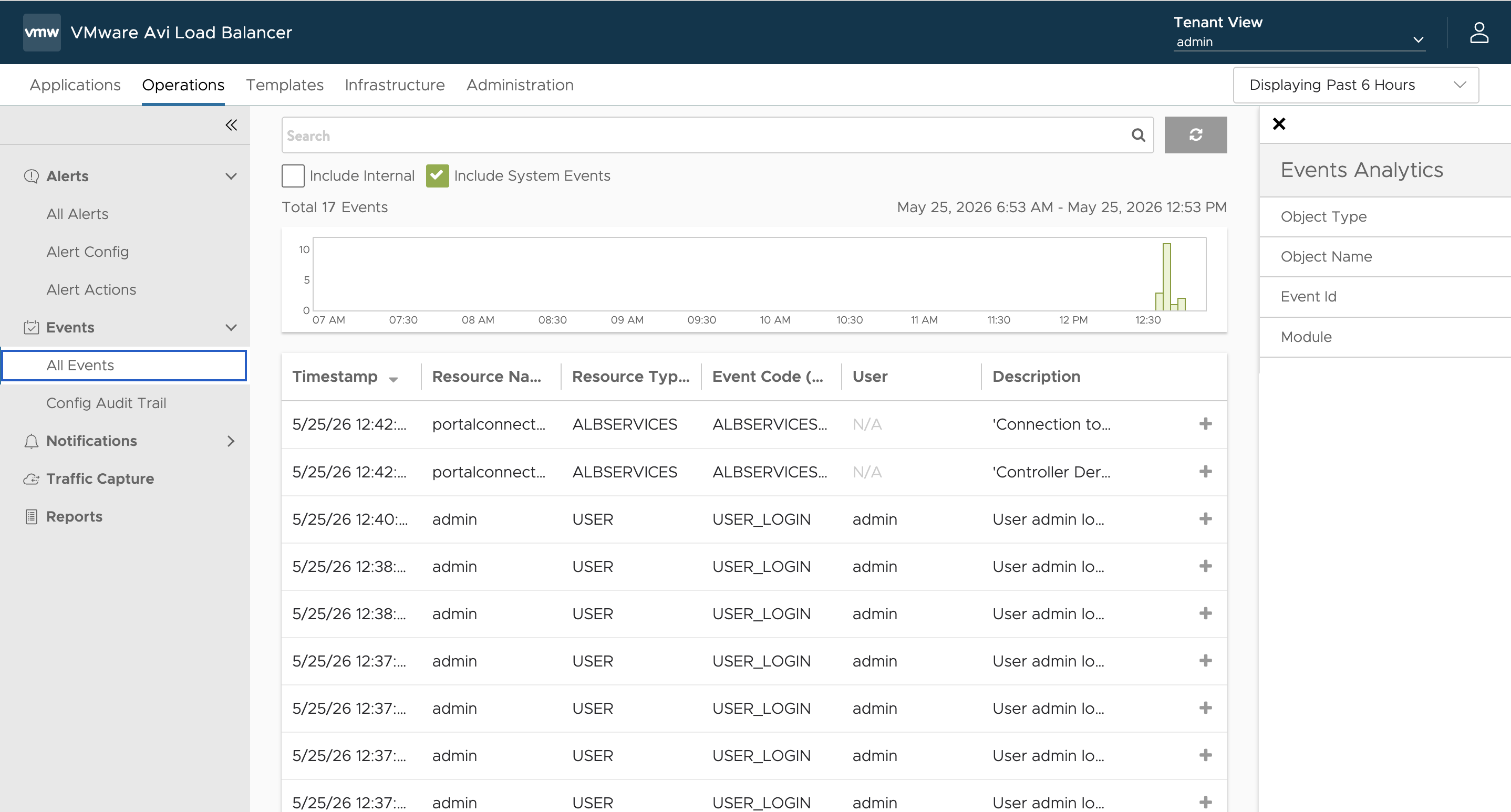

From the left navigation bar, select Events > All Events.

Troubleshooting

The following table describes the three most common failure scenarios.

Issue	Cause	Resolution
Repeated certificate enrollments / SCM credit drain. The connector keeps requesting new certificates but they never appear installed on Avi.	Avi is rejecting the import. This is often a chain ordering issue. On older versions of the connector the pending Sectigo request is not remembered between attempts so each retry triggers a fresh enrollment.	Upgrade the connector to the current release.
Not found error on import. Avi is rejecting the imported certificate because it can’t find the intermediate or root CA.	Sectigo has rotated its issuing CA chain and the new CA certificate is not yet installed on the Avi Load Balancer Controller’s certificate store.	Import the new Sectigo issuing CA certificate into the Controller’s certificate store before triggering enrollment.
Certificate is never renewed. The alert fires but no new certificate is issued.	The Issuer custom field on the certificate management profile is missing, empty, or set to something other than Sectigo.	Confirm the management profile has Sectigo in the Issuer field and that the parameter is marked dynamic.

Issue

Cause

Resolution

Repeated certificate enrollments / SCM credit drain. The connector keeps requesting new certificates but they never appear installed on Avi.

Avi is rejecting the import. This is often a chain ordering issue. On older versions of the connector the pending Sectigo request is not remembered between attempts so each retry triggers a fresh enrollment.

Upgrade the connector to the current release.

Not found error on import. Avi is rejecting the imported certificate because it can’t find the intermediate or root CA.

Sectigo has rotated its issuing CA chain and the new CA certificate is not yet installed on the Avi Load Balancer Controller’s certificate store.

Import the new Sectigo issuing CA certificate into the Controller’s certificate store before triggering enrollment.

Certificate is never renewed. The alert fires but no new certificate is issued.

The Issuer custom field on the certificate management profile is missing, empty, or set to something other than Sectigo.

Confirm the management profile has Sectigo in the Issuer field and that the parameter is marked dynamic.
